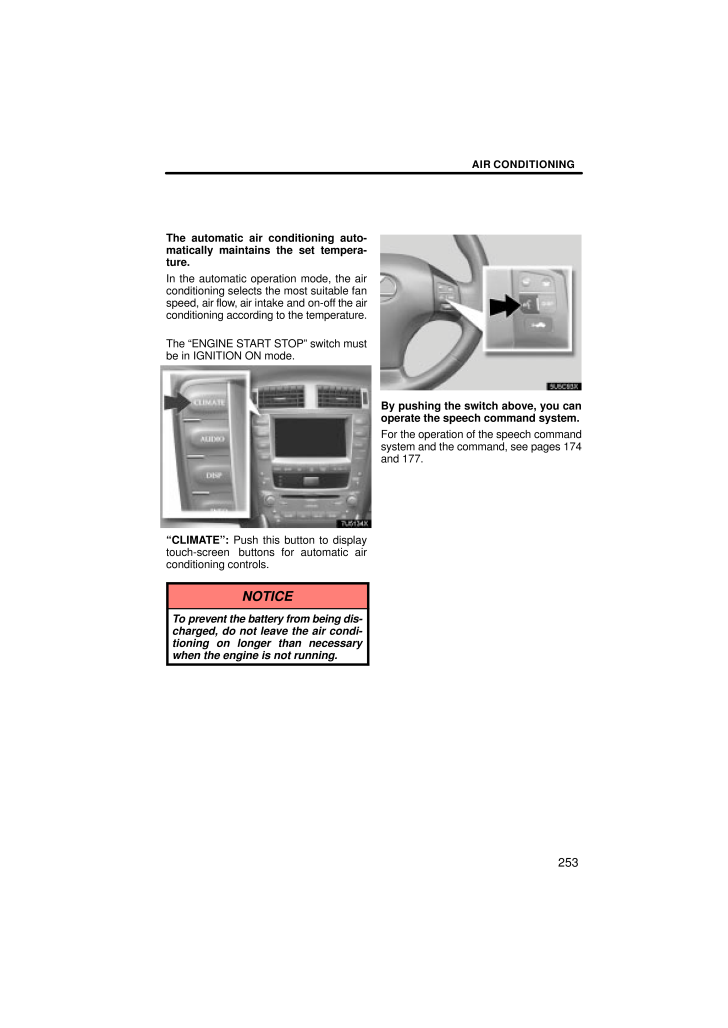

AIR CONDITIONING253The automatic air conditioning auto-matically maintains the set tempera-ture.In the automatic operation mode, the airconditioning selects the most suitable fanspeed, air flow, air intake and on-off the airconditioning according to the temperature.The "ENGINE START STOP" switch mustbe in IGNITION ON mode."CLIMATE": Push this button to displaytouch-screen buttons for automatic airconditioning controls.NOTICETo prevent the battery from being dis-charged, do not leave the air condi-tioning on longer than necessarywhen the engine is not running.By pushing the switch above, you canoperate the speech command system.For the operation of the speech commandsystem and the command, see pages 174and 177.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .SECTION 7AIR CONDITION...SECTION 7AIR CONDITIONING249AIR CONDITIONINGAir conditioningAutomatic air conditioning controls 250
-
2 .AIR CONDITIONING250Operat...AIR CONDITIONING250Operations such as changing the air outlets or fan speed are carried out on the touchscreen. To display the air conditioning touch screen, push the "CLIMATE" button.1Driver side temperature display (In degrees Fahrenheit or Centi-grade...
-
3 .AIR CONDITIONING25114"AUT...AIR CONDITIONING25114"AUTO" button 254. . . . . . . . . . . . 15"TEMP" buttons(Driver side temperature control but-ton) (At the independent mode thatdisplay shows "DUAL"; mainly ordriver and secondarily for front pas-senger)(At the linked mode that display...
-
5 .AIR CONDITIONING253The au...AIR CONDITIONING253The automatic air conditioning auto-matically maintains the set tempera-ture.In the automatic operation mode, the airconditioning selects the most suitable fanspeed, air flow, air intake and on-off the airconditioning according to the te...
-
6 .AIR CONDITIONING254(a) Cl...AIR CONDITIONING254(a) Climate controlSETTING OPERATION - automatic con-trol1. Push the "AUTO" button.An indicator light will illuminate to showthat the automatic operation mode hasbeen selected.Air flow quantity, switching of the dif fusers,on-off of the ...
-
7 .AIR CONDITIONING2552. Use...AIR CONDITIONING2552. Use the "TEMP" or "PASSENGERTEMP" button to set the desired vehicleinterior temperature.The "TEMP" or "PASSENGER TEMP"("", " ") buttons are used to set the de-sired interior temperature. The interiortemperature will be controlled on ...
-
8 .AIR CONDITIONING256INFORM...AIR CONDITIONING256INFORMATIONKnowledge for the two-temperatureselector operation:This air conditioning system has twoindependent temperature selectors:left and right (for the use of driver andfront passenger respectively). There are cases where the temper...
-
9 .AIR CONDITIONING257SETTIN...AIR CONDITIONING257SETTING OPERATION - manual con-trolWhen one of the manual control touch-screen buttons is depressed while operat-ing in automatic mode, the operation cor-responding to the depressed button is set.Other conditions continue to be adjusted...
-
10 .AIR CONDITIONING258If man...AIR CONDITIONING258If manual switching of air intake is de-sired -Each time you push the air intake controlbutton, the mode changes in order fromthe RECIRCULATED AIR mode to AUTO-MATIC mode to OUTSIDE AIR mode, thenback to the RECIRCULATED AIR mode.Each in...
-
11 .AIR CONDITIONING259To cha...AIR CONDITIONING259To change the sensitivity of the sensorswitching between the RECIRCU-LATED AIR and OUTSIDE AIR in the AU-TOMATIC mode, push the air intakecontrol button and hold it for a few sec-onds.The "Smog Sensor" screen will be dis-played.The sensi...
-
12 .AIR CONDITIONING260(b) Wi...AIR CONDITIONING260(b) Windshield defogging and defrost-ingTo remove interior fog on the wind-shield -Push the windshield air flow button.To remove frost or exterior fog on thewindshield-1. Push the "TEMP" ("") button to setthe "HI".2. Push the windshield ...
-
13 .AIR CONDITIONING261(c) Re...AIR CONDITIONING261(c) Rear window and outside rear viewmirror defogingTo turn the electric rear window andoutside rear view mirror defogger on,push the button above.The "ENGINE START STOP" switch mustbe in IGNITION ON mode.The thin heater wires on the ins...
-
14 .AIR CONDITIONING262(d) Mi...AIR CONDITIONING262(d) Micro dust and pollen filterThis vehicle is equipped with a microdust and pollen filter mode. When thismode is activated, air from the ventswill remove pollen on the driver andpassengers.Push the micro dust and pollen filterbutton.T...
-
15 .AIR CONDITIONING263(e) Ou...AIR CONDITIONING263(e) Outside temperature displayOutside temperature is displayed onthe screen.The displayed temperature ranges from-40C (-40F) up to 50C (122F).If the temperature shows "- -" or "E", takeyour vehicle to your Lexus dealer.(f) Operating tip...
-
16 .AIR CONDITIONING264Heatin...AIR CONDITIONING264HeatingFor best results, set controls to:For automatic operation -Push in the "AUTO" button.Temperature - To the desired temperatureAir intake - OUTSIDE AIRAir conditioning - OFFFor manual operation -Fan speed - To the desired fan speedT...
-
17 .AIR CONDITIONING265Defogg...AIR CONDITIONING265Defogging and defrosting- The inside of the windshieldFor best results, set controls to:For automatic operation -Temperature - Towards high temperature to heat; low temperature to coolAir intake - OUTSIDE AIRAir flow - WINDSHIELDFor manu...
-
18 .AIR CONDITIONING266(g) Ad...AIR CONDITIONING266(g) Adjusting the position of and open-ing and closing the air outletsCenter outlets 1Adjusting air flow direction2Open or close the ventSide outlets1Adjusting air flow direction2Open or close the ventRear seat outlets 1Adjusting air flo...
-
19 .AIR CONDITIONING267(h) Ch...AIR CONDITIONING267(h) Checking and replacing the airconditioning filterThe air conditioning filter informationlabel is placed in the glove box asshown and indicates that a filter hasbeen installed.The air conditioning filter, in addition to re-moving odor...
-
20 .AIR CONDITIONING2681. Set...AIR CONDITIONING2681. Set the air conditioning system toRECIRCULATED AIR mode.The air conditioning filter case cannot beremoved with the OUTSIDE AIR mode.2. Turn the "ENGINE START STOP"switch off.When you replace the filter, be sure to turnoff the fan.3. O...
-
21 .AIR CONDITIONING269INFORM...AIR CONDITIONING269INFORMATIONThe air conditioning filter should beinstalled properly in position. Theuse of air conditioning with the filterremoved may cause deteriorateddustproof performance and then af-fect air conditioning performance.
