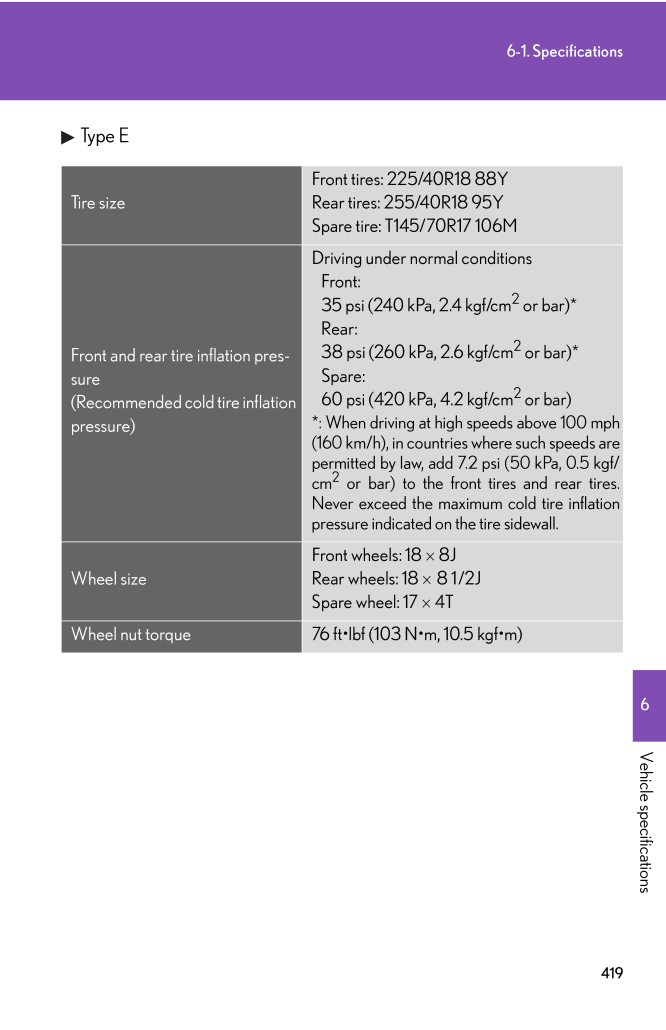

4196-1. Specifications6Vehicle specificationsType ETire sizeFront tires: 225/40R18 88YRear tires: 255/40R18 95YSpare tire: T145/70R17 106MFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)*Rear: 38 psi (260 kPa, 2.6 kgf/cm2 or bar)*Spare: 60 psi (420 kPa, 4.2 kgf/cm2 or bar)*: When driving at high speeds above 100 mph(160 km/h), in countries where such speeds arepermitted by law, add 7.2 psi (50 kPa, 0.5 kgf/cm2 or bar) to the front tires and rear tires.Never exceed the maximum cold tire inflationpressure indicated on the tire sidewall.Wheel sizeFront wheels: 18 × 8JRear wheels: 18 × 8 1/2JSpare wheel: 17 × 4T Wheel nut torque 76 ft*lbf (103 N*m, 10.5 kgf*m)
