4066-1. SpecificationsMaintenance data (fuel, oil level, etc.)Dimensions and weight*1: Unladen vehicle*2:Vehicle with 255/40R18 tires*3:Vehicle with tires other than the aboveOverall length 180.1 in. (4575 mm)Overall width 70.9 in. (1800 mm)Overall height ...

2 .

4076-1. Specifications6Vehicle specificationsVehicle identificationnVehicle identification numberThe vehicle identification number (V IN) is the legal identifier for yourvehicle. This is the primary identification number for your Lexus. It is usedin regist...

3 .

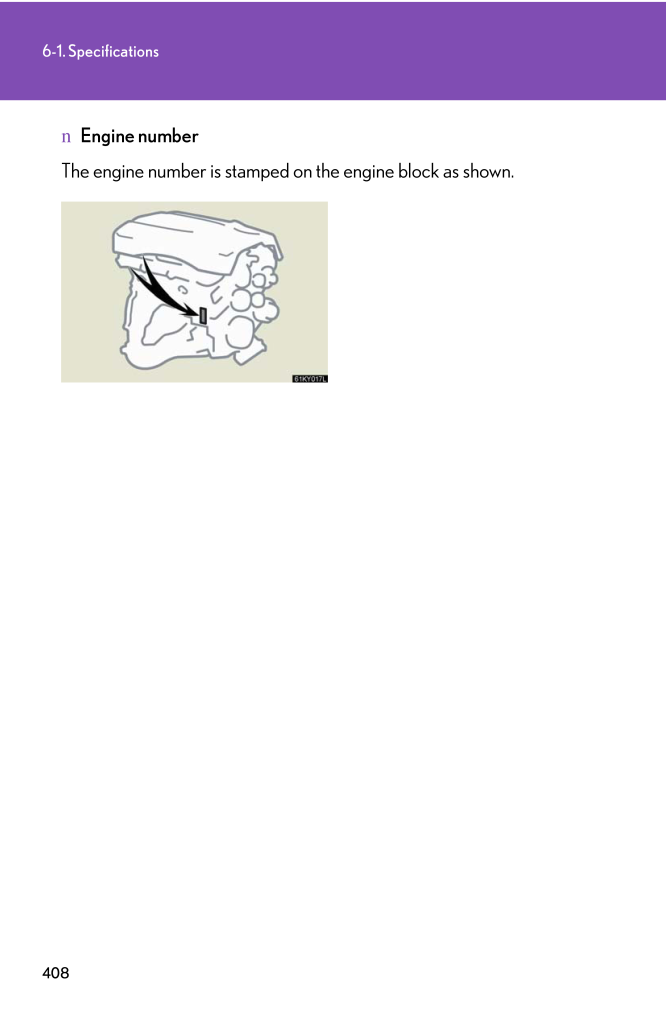

4086-1. SpecificationsnEngine numberThe engine number is stamped on the engine block as shown.

4 .

4096-1. Specifications6Vehicle specificationsEngineFuelIS250 IS350Model 4GR-FSE 2GR-FSEType6-cylinder V type, 4-cycle, gasoline6-cylinder V type, 4-cycle, gasolineBore and stroke3.27 ×(83.0 × 77.0 mm)3.70 × 3.27 in. (94.0 × 83.0 mm)Displacement 152.5 cu.in...

5 .

4106-1. SpecificationsLubrication system*:5W-30 is an oil that provides optimal levels of fuel efficiency.Oil viscositylThe 5W portion of the oil viscosity rating indicates the characteristic ofthe oil which allows cold startability . Oils with a lower val...

6 .

4116-1. Specifications6Vehicle specificationsCooling systemIgnition systemCapacity9.6 qt.(9.1 L, 8.0 lmp.qt.)Coolant typeUse either of the following.*"Toyota Super Long Life Coolant" *Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non...

7 .

4126-1. SpecificationsElectrical systemDifferential*: "Toyota Genuine Differential gear oil LT" is filled in your Lexus vehicle at fac-tory fill. Use Lexus approved "Toyota Ge nuine Differential gear oil LT" or anequivalent of matching quality to satisf y ...

8 .

4136-1. Specifications6Vehicle specificationsAutomatic Transmission*: The fluid capacity is provided as a reference. If replacement is necessary, con-tact your Lexus dealer.Manual TransmissionClutchIS350 IS250 (2WD) IS250 (AWD)Fluid capacity*7.5 qt. (7.1 L...

9 .

4146-1. SpecificationsBrakes*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50kgf) while the engine is running.*2:Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).*3:Parking brake lever travel w...

10 .

4156-1. Specifications6Vehicle specificationsSteeringTires and wheelsType AFree play Less than 1.2 in. (30 mm)Tire size205/55R16 89W, T125/70D17 98M (spare)Front and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under norma...

11 .

4166-1. SpecificationsType BTire size225/45R17 90W, 245/45R17 95W, T125/70D17 98M (spare)Front and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or bar)*Rear: 38 ps...

12 .

4176-1. Specifications6Vehicle specificationsType CTire size225/45R17 91V, 225/45R17 91V, T125/70D17 98MFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kgf/cm2 or b...

13 .

4186-1. SpecificationsType DTire sizeFront tires: 225/45R17 91VRear tires: 245/45R17 95VSpare tire: T125/70R17 98MFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront: 35 psi (240 kPa, 2.4 kg...

14 .

4196-1. Specifications6Vehicle specificationsType ETire sizeFront tires: 225/40R18 88YRear tires: 255/40R18 95YSpare tire: T145/70R17 106MFront and rear tire inflation pres-sure(Recommended cold tire inflation pressure)Driving under normal conditionsFront:...

15 .

4206-1. SpecificationsLight bulbs*:If equippedA: D4S discharge bulbsB: H11 halogen bulbsC: Wedge base bulbs (amber)D: HB3 halogen bulbsE: Wedge base bulbs (clear)F: HB4 halogen bulbsG: Double end bulbsLight Bulbs Bulb No. W TypeExteriorHeadlightsHigh beamL...

16 .

4216-1. Specifications6Vehicle specificationsFuel informationnFuel tank opening for unleaded gasolineTo help prevent incorrect fueling, your Lexus has a fuel tank opening that onlyaccommodates the special nozzle on unleaded fuel pumps.nIf premium gasoline ...

17 .

4226-1. SpecificationsnGasoline quality standardslAutomotive manufacturers in the US, Europe and Japan have developed aspecification for fuel quality called World-Wide Fuel Charter (WWFC) that isexpected to be applied worldwide.lThe WWFC consists of four c...

18 .

4236-1. Specifications6Vehicle specificationsNOTICEnNotice on gasoline qualitylDo not use leaded gasoline.Leaded gasoline can cause damage to your vehicle's three-way catalytic convert-ers causing the emission control system to malfunction.lDo not use gaso...

19 .

4246-1. SpecificationsTire informationTypical tire symbolsStandard tireCompact spare tireTire size (→P. 426)DOT and Tire Identification Number (TIN) ( →P. 426)Location of treadwear indicators ( →P. 306)Tire ply composition and materialsPlies are layers of ...

20 .

4256-1. Specifications6Vehicle specificationsRadial tires or bias-ply tiresA radial tire has "RADIAL" on the sidewall. A tire not marked "RADIAL" isa bias-ply tire.TUBELESS or TUBE TYPEA tubeless tire does not have a tube an d air is directly filled in the...

21 .

4266-1. SpecificationsTypical DOT and tire identification number (TIN)DOT symbol*Tire Identification Number (TIN)Tire manufacturer's identifica-tion markTire size codeManufacturer's optional tiretype code (3 or 4 letters)Manufacturing weekManufacturing yea...

22 .

4276-1. Specifications6Vehicle specificationsnTire dimensionsSection widthTire heightWheel diameterTire section namesBeadSidewallShoulderTreadBeltInner linerReinforcing rubberCarcassRim linesBead wiresChaferUniform Tire Quality GradingThis information has ...

23 .

4286-1. SpecificationsnDOT quality gradesAll passenger vehicle tires must co nform to Federal Safety Require-ments in addition to these grades. Quality grades can be found whereapplicable on the tire sidewall between tread shoulder and maximumsection widt...

24 .

4296-1. Specifications6Vehicle specificationsnTemperature A, B, CThe temperature grades are A (the hi ghest), B, and C, representingthe tire's resistance to the generation of heat and its ability to dissipateheat when tested under controlled conditions o...

25 .

4306-1. SpecificationsMaximum inflation pres-sureThe maximum cold inflated pressure to which a tire may be inflated, shown on the sidewall of the tireMaximum loaded vehicle weightThe sum of:(a) Curb weight(b) Accessory weight(c) Vehicle capacity weight(d) ...

26 .

4316-1. Specifications6Vehicle specificationsTire related term MeaningRim width Nominal distance between rim flangesVehicle maximum load on the tireThe load on an individual tire that is determined by distributing to each axle its share of the maximum load...

27 .

4326-1. SpecificationsTire related term MeaningBeadThe part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to fit the rimBead separationA breakdown of the bond between components in the beadBias ply tireA pne...

28 .

4336-1. Specifications6Vehicle specificationsTire related term MeaningIntended outboard side-wall(a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or deeper than the sa...

29 .

4346-1. SpecificationsTire related term MeaningPly separationA parting of rubber compound between adjacent pliesPneumatic tireA mechanical device made of rubber, chemicals, fab-ric and steel or other materials, that, when mounted on an automotive wheel, pr...

30 .

4356-1. Specifications6Vehicle specifications*:Table 1 ⎯ Occupant loading and distributi on for vehicle normal load forvarious designated seating capacitiesTire related term MeaningTreadThat portion of a tire that comes into contact with the roadTread ribA...
