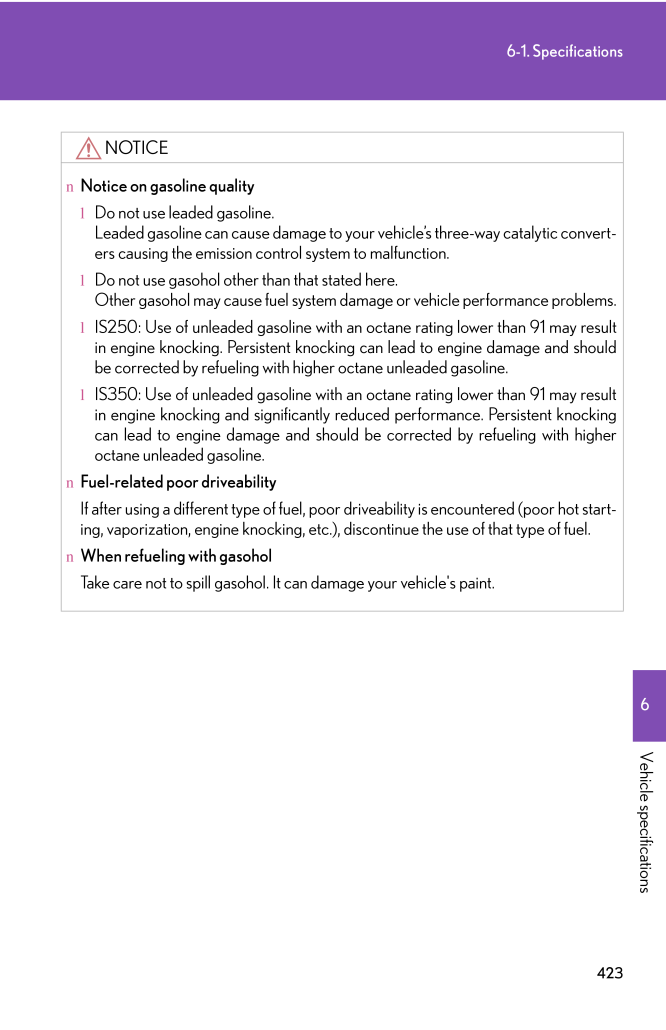

4236-1. Specifications6Vehicle specificationsNOTICEnNotice on gasoline qualitylDo not use leaded gasoline.Leaded gasoline can cause damage to your vehicle's three-way catalytic convert-ers causing the emission control system to malfunction.lDo not use gasohol other than that stated here.Other gasohol may cause fuel system damage or vehicle performance problems.lIS250: Use of unleaded gasoline with an octane rating lower than 91 may resultin engine knocking. Persistent knocking can lead to engine damage and shouldbe corrected by refueling with higher octane unleaded gasoline.lIS350: Use of unleaded gasoline with an octane rating lower than 91 may resultin engine knocking and significantly re duced performance. Persistent knockingcan lead to engine damage and should be corrected by refueling with higheroctane unleaded gasoline.nFuel-related poor driveabilityIf after using a different type of fuel, poor driveability is encountered (poor hot start-ing, vaporization, engine knoc king, etc.), discontinue the use of that type of fuel.nWhen refueling with gasoholTake care not to spill gasohol. It can damage your vehicle's paint.
