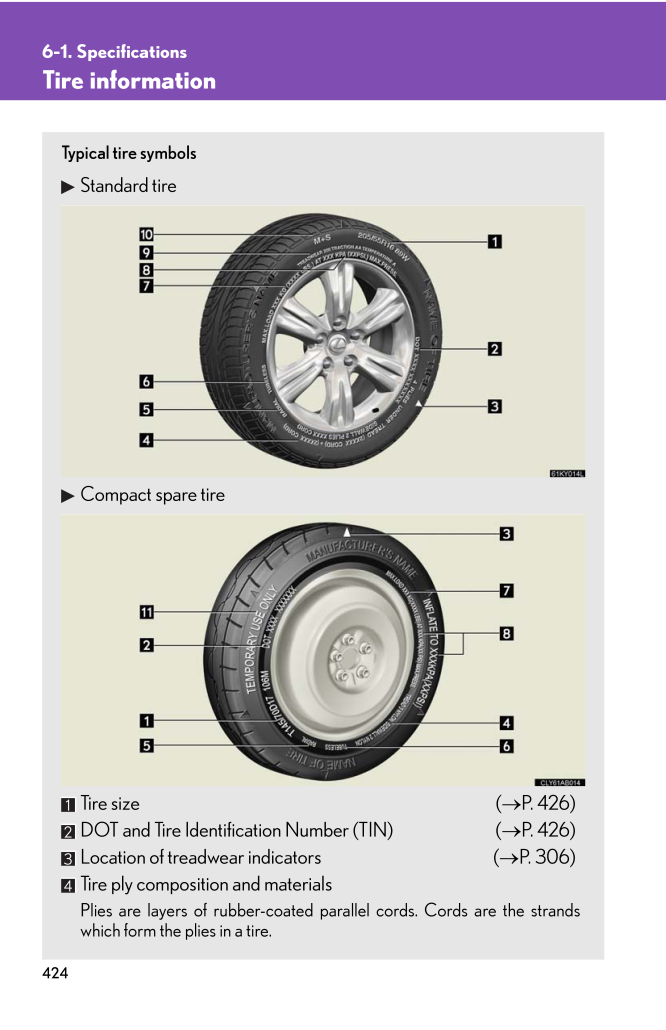

4246-1. SpecificationsTire informationTypical tire symbolsStandard tireCompact spare tireTire size (→P. 426)DOT and Tire Identification Number (TIN) ( →P. 426)Location of treadwear indicators ( →P. 306)Tire ply composition and materialsPlies are layers of rubber-coated parallel cords. Cords are the strandswhich form the plies in a tire.
