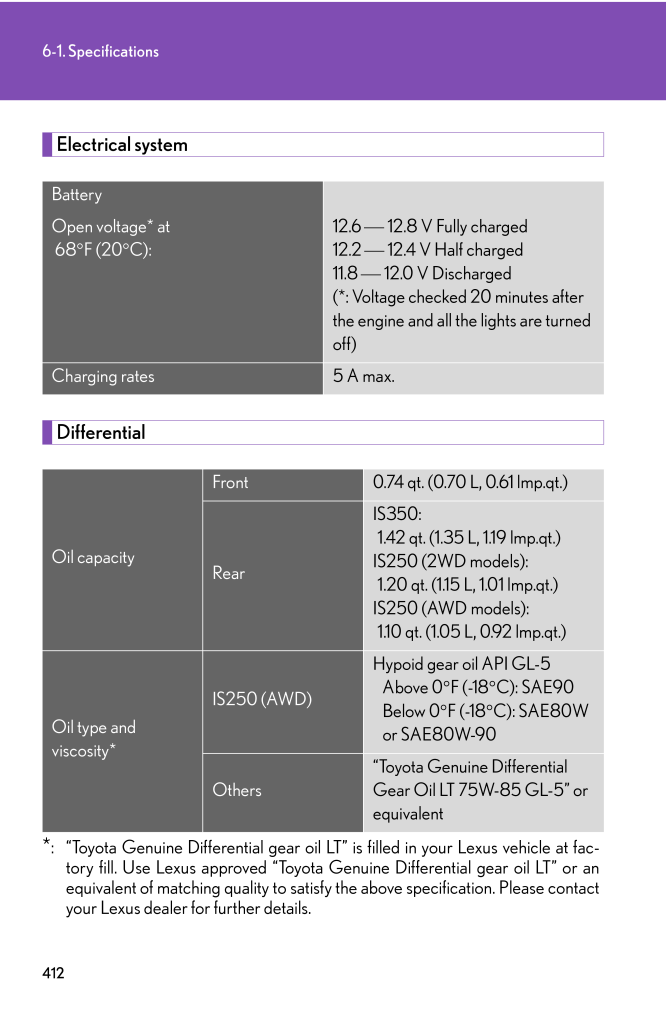

4126-1. SpecificationsElectrical systemDifferential*: "Toyota Genuine Differential gear oil LT" is filled in your Lexus vehicle at fac-tory fill. Use Lexus approved "Toyota Ge nuine Differential gear oil LT" or anequivalent of matching quality to satisf y the above specification. Please contactyour Lexus dealer for further details.BatteryOpen voltage* at 68°F (20°C):12.6 ⎯ 12.8 V Fully charged12.2 ⎯ 12.4 V Half charged11.8 ⎯ 12.0 V Discharged(*: Voltage checked 20 minutes after the engine and all the lights are turned off)Charging rates 5 A max.Oil capacityFront 0.74 qt. (0.70 L, 0.61 lmp.qt.)RearIS350:1.42 qt. (1.35 L, 1.19 lmp.qt.)IS250 (2WD models):1.20 qt. (1.15 L, 1.01 lmp.qt.)IS250 (AWD models):1.10 qt. (1.05 L, 0.92 lmp.qt.)Oil type and viscosity*IS250 (AWD)Hypoid gear oil API GL-5Above 0°F (-18°C): SAE90Below 0°F (-18°C): SAE80W or SAE80W-90Others"Toyota Genuine Differential Gear Oil LT 75W-85 GL-5" or equivalent
