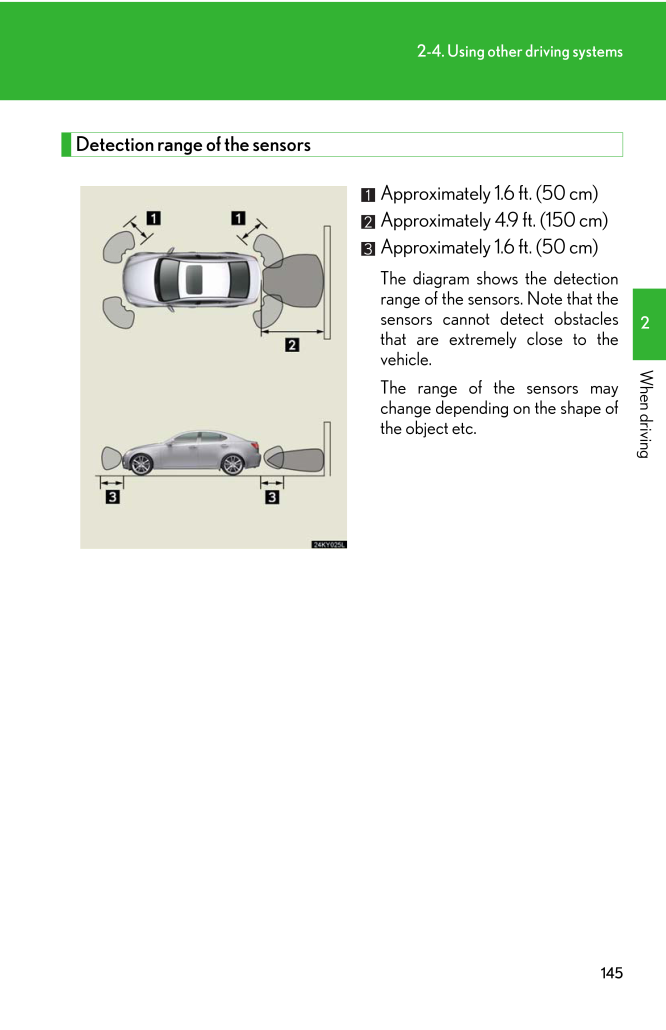

1452-4. Using other driving systems2When drivingDetection range of the sensorsApproximately 1.6 ft. (50 cm) Approximately 4.9 ft. (150 cm) Approximately 1.6 ft. (50 cm) The diagram shows the detectionrange of the sensors. Note that thesensors cannot detect obstaclesthat are extremely close to thevehicle.The range of the sensors maychange depending on the shape ofthe object etc.
