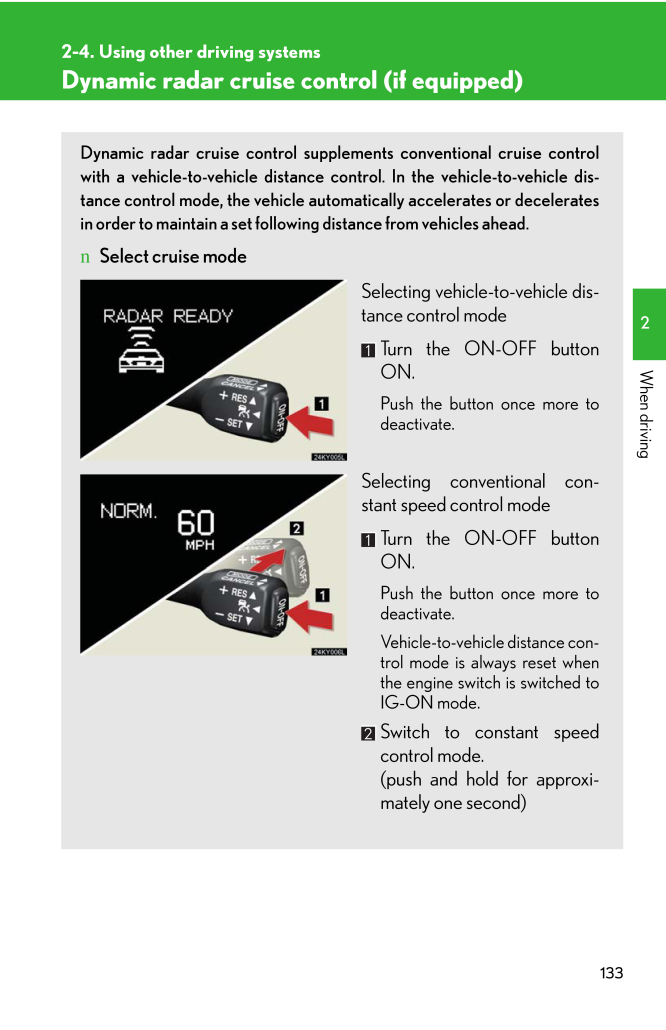

1332-4. Using other driving systems2When drivingDynamic radar cruise control (if equipped) Dynamic radar cruise control supple ments conventional cruise controlwith a vehicle-to-vehicle distance co ntrol. In the vehicle-to-vehicle dis-tance control mode, the vehicle automa tically accelerates or deceleratesin order to maintain a set following distance from vehicles ahead. nSelect cruise modeSelecting vehicle-to-vehicle dis-tance control modeTurn the ON-OFF buttonON.Push the button once more todeactivate. Selecting conventional con-stant speed control mode Turn the ON-OFF buttonON.Push the button once more todeactivate. Vehicle-to-vehicle distance con-trol mode is always reset whenthe engine switch is switched toIG-ON mode. Switch to constant speedcontrol mode.(push and hold for approxi-mately one second)
