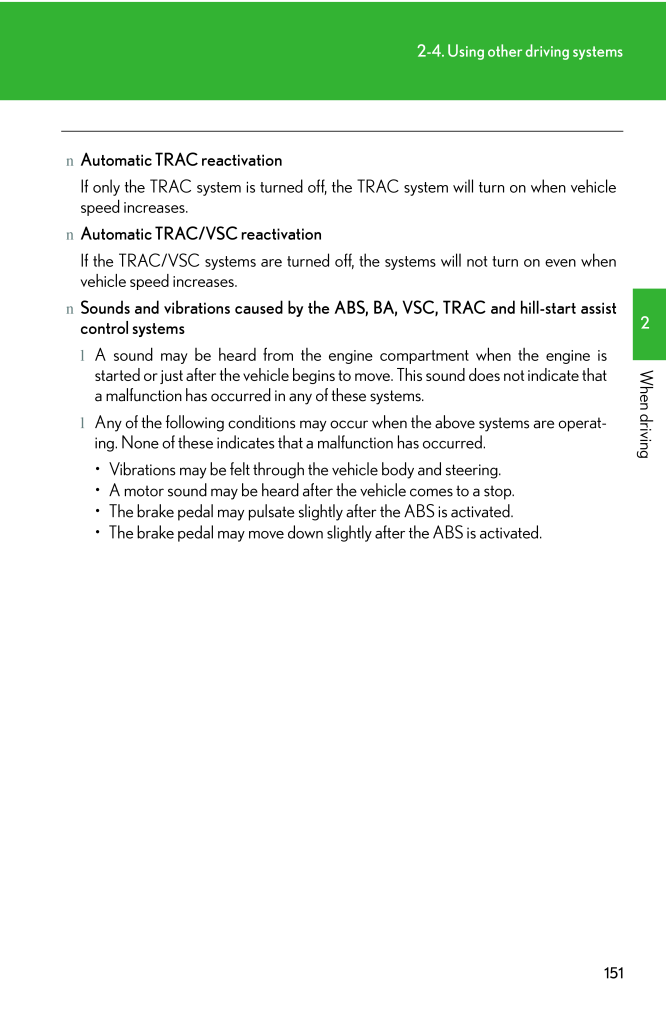

1512-4. Using other driving systems2When drivingnAutomatic TRAC reactivationIf only the TRAC system is turned off, th e TRAC system will turn on when vehiclespeed increases.nAutomatic TRAC/VSC reactivationIf the TRAC/VSC systems are turned off, the systems will not turn on even whenvehicle speed increases.nSounds and vibrations caused by the A BS, BA, VSC, TRAC and hill-start assistcontrol systemslA sound may be heard from the engi ne compartment when the engine isstarted or just after the vehicle begins to move. This sound does not indicate thata malfunction has occurred in any of these systems. lAny of the following conditions may occur when the above systems are operat-ing. None of these indicates that a malfunction has occurred. * Vibrations may be felt through the vehicle body and steering.* A motor sound may be heard after the vehicle comes to a stop.* The brake pedal may pulsate slightly after the ABS is activated.* The brake pedal may move down s lightly after the ABS is activated.
