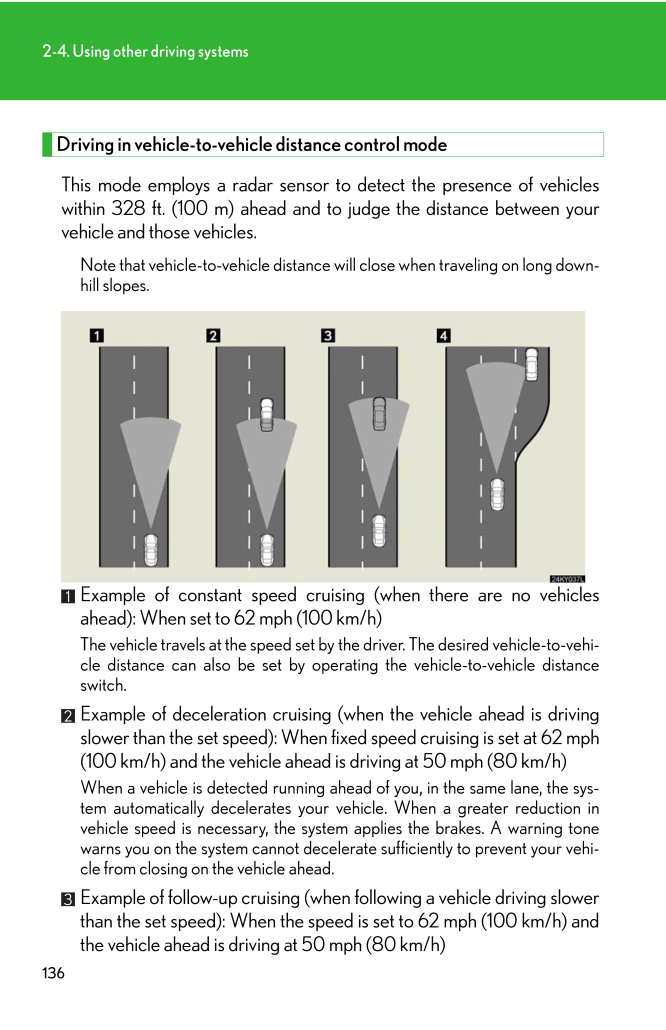

1362-4. Using other driving systemsDriving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicleswithin 328 ft. (100 m) ahead and to judge the distance between yourvehicle and those vehicles. Note that vehicle-to-vehicle distance will close when traveling on long down-hill slopes. Example of constant speed cruising (when there are no vehiclesahead): When set to 62 mph (100 km/h) The vehicle travels at the speed set by the driver. The desired vehicle-to-vehi-cle distance can also be set by oper ating the vehicle-to-vehicle distanceswitch. Example of deceleration cruising (when the vehicle ahead is drivingslower than the set speed): When fixed speed cruising is set at 62 mph(100 km/h) and the vehicle ahead is driving at 50 mph (80 km/h) When a vehicle is detected running ahead of you, in the same lane, the sys-tem automatically decelerates your vehicle. When a greater reduction invehicle speed is necessary, the system applies the brakes. A warning tonewarns you on the system cannot decelerate sufficiently to prevent your vehi-cle from closing on the vehicle ahead. Example of follow-up cruising (when following a vehicle driving slowerthan the set speed): When the speed is set to 62 mph (100 km/h) andthe vehicle ahead is driving at 50 mph (80 km/h)
