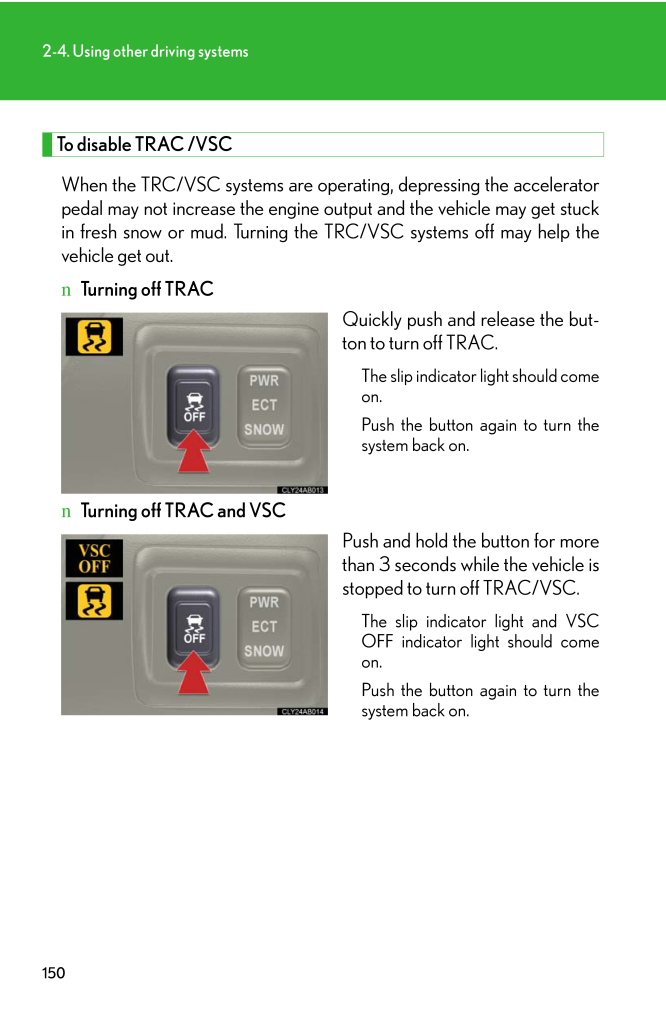

1502-4. Using other driving systemsTo disable TRAC /VSCWhen the TRC/VSC systems are oper ating, depressing the acceleratorpedal may not increase the engine ou tput and the vehicle may get stuckin fresh snow or mud. Turning the TRC/VSC systems off may help thevehicle get out.nTurning off TRACQuickly push and release the but-ton to turn off TRAC.The slip indicator light should comeon. Push the button again to turn thesystem back on.nTurning off TRAC and VSCPush and hold the button for morethan 3 seconds while the vehicle isstopped to turn off TRAC/VSC.The slip indicator light and VSCOFF indicator light should comeon. Push the button again to turn thesystem back on.
