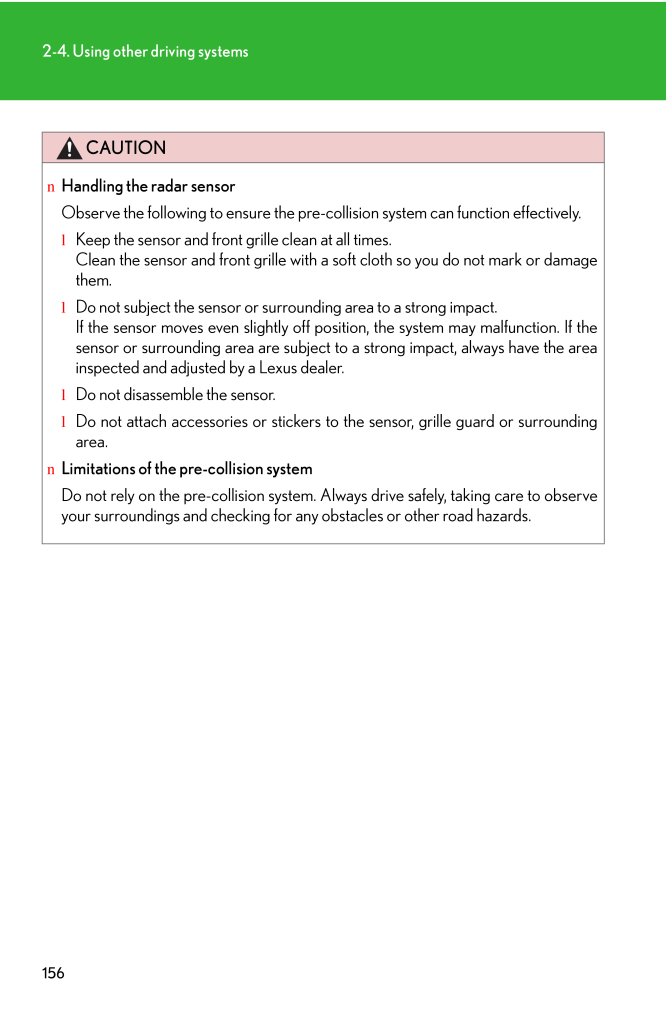

1562-4. Using other driving systemsCAUTIONnHandling the radar sensorObserve the following to ensure the pre-co llision system can function effectively.lKeep the sensor and front grille clean at all times.Clean the sensor and front grille with a so ft cloth so you do not mark or damagethem.lDo not subject the sensor or surrounding area to a strong impact.If the sensor moves even slightly off position, the system may malfunction. If thesensor or surrounding area are subject to a strong impact, always have the areainspected and adjusted by a Lexus dealer.lDo not disassemble the sensor.lDo not attach accessories or stickers to the sensor, grille guard or surroundingarea.nLimitations of the pre-collision systemDo not rely on the pre-collision system. Always drive safely, taking care to observeyour surroundings and checking for any obstacles or other road hazards.
