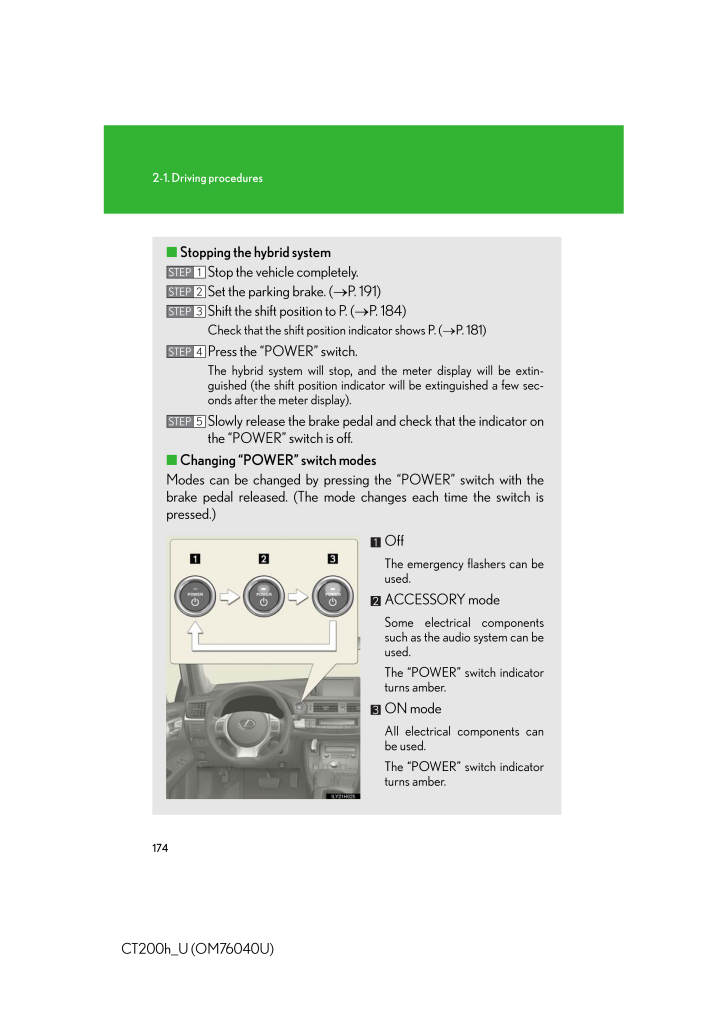

1742-1. Driving proceduresCT200h_U (OM76040U)■Stopping the hybrid systemStop the vehicle completely.Set the parking brake. (→P. 191)Shift the shift position to P. (→P. 184)Check that the shift position indicator shows P. ( →P. 181)Press the "POWER" switch.The hybrid system will stop, and the meter display will be extin-guished (the shift position indicat or will be extinguished a few sec-onds after the meter display).Slowly release the brake pedal and check that the indicator onthe "POWER" switch is off.■Changing "POWER" switch modesModes can be changed by pressing the "POWER" switch with thebrake pedal released. (The mode changes each time the switch ispressed.)OffThe emergency flashers can beused. ACCESSORY modeSome electrical componentssuch as the audio system can beused.The "POWER" switch indicatorturns amber.ON mode All electrical components canbe used.The "POWER" switch indicatorturns amber.STEP 1STEP 2STEP 3STEP 4STEP 5
