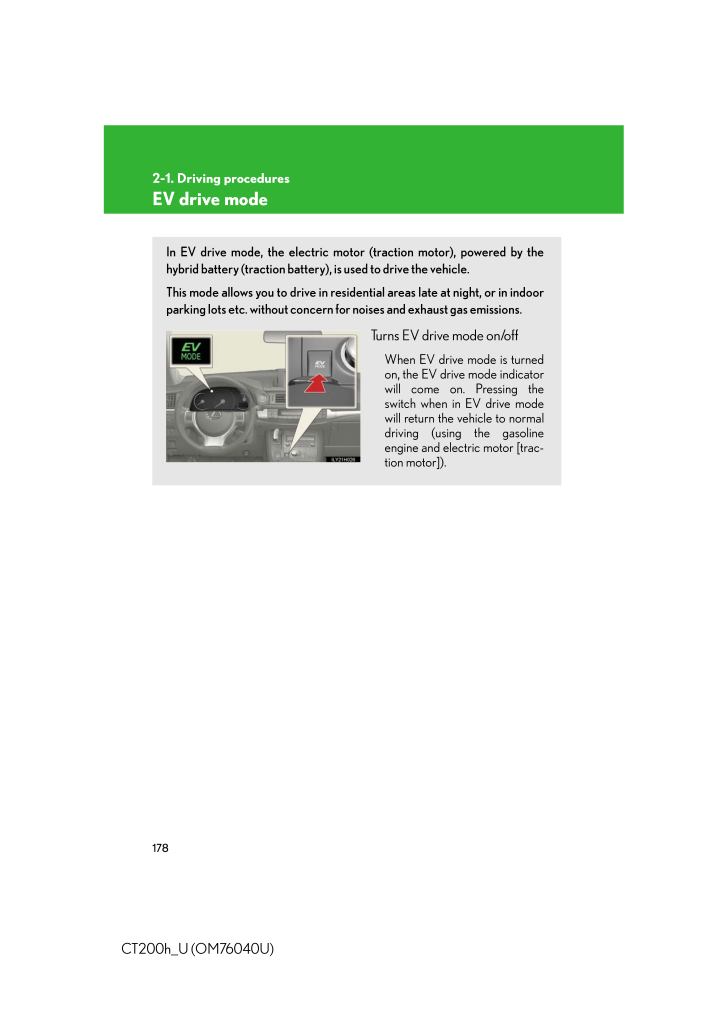

1782-1. Driving proceduresCT200h_U (OM76040U)EV drive modeIn EV drive mode, the electric motor (traction motor), powered by thehybrid battery (traction battery) , is used to drive the vehicle.This mode allows you to drive in residential areas late at night, or in indoorparking lots etc. without concern fo r noises and exhaust gas emissions.Turns EV drive mode on/offWhen EV drive mode is turnedon, the EV drive mode indicatorwill come on. Pressing theswitch when in EV drive modewill return the vehicle to normaldriving (using the gasolineengine and electric motor [trac-tion motor]).
