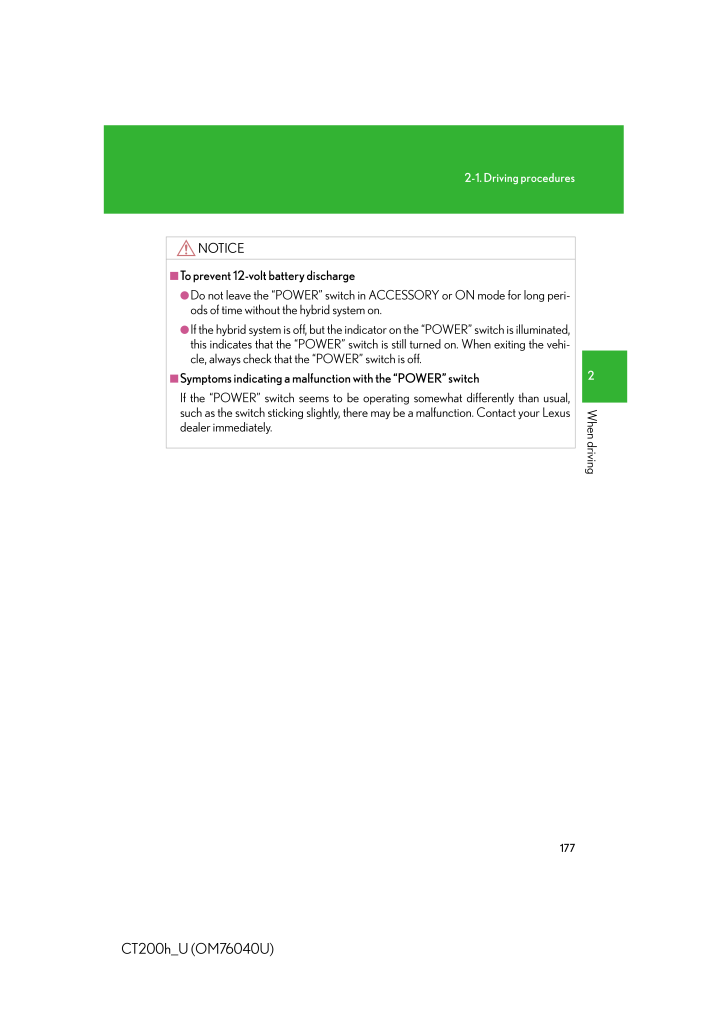

1772-1. Driving procedures2When drivingCT200h_U (OM76040U)NOTICE■To prevent 12-volt battery discharge●Do not leave the "POWER" switch in ACCESSORY or ON mode for long peri-ods of time without the hybrid system on.●If the hybrid system is off, but the indi cator on the "POWER" switch is illuminated,this indicates that the "POWER" switch is still turned on. When exiting the vehi-cle, always check that the "POWER" switch is off.■Symptoms indicating a malfunction with the "POWER" switchIf the "POWER" switch seems to be operating somewhat differently than usual,such as the switch sticking slightly, there may be a malfunction. Contact your Lexusdealer immediately.
