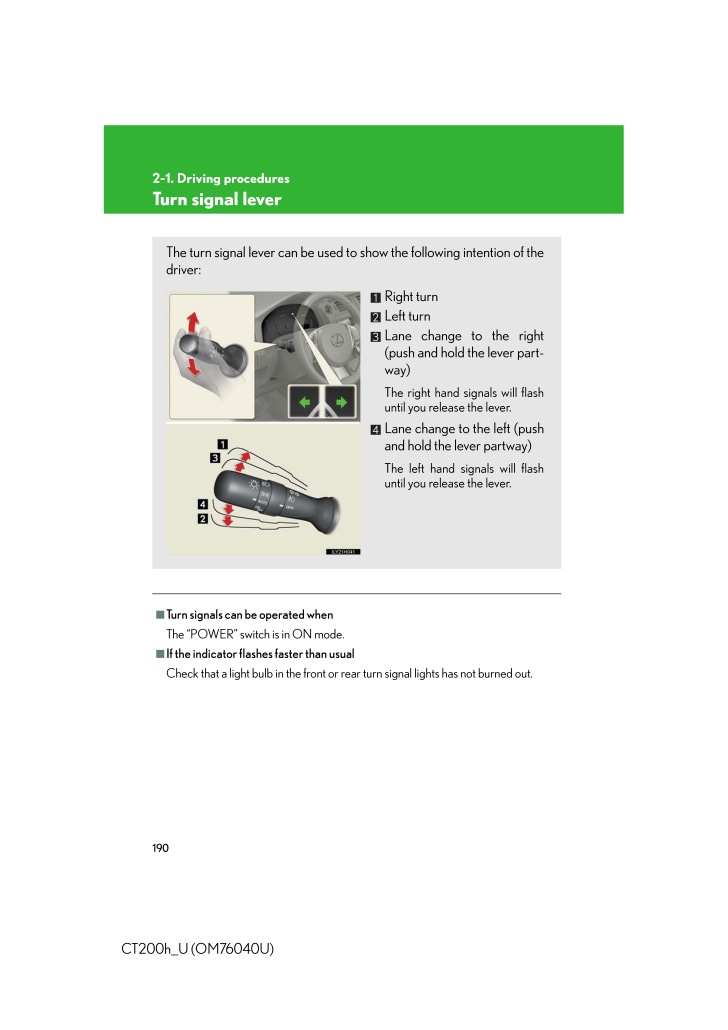

1902-1. Driving proceduresCT200h_U (OM76040U)Turn signal lever■Turn signals can be operated whenThe "POWER" switch is in ON mode.■If the indicator flashes faster than usualCheck that a light bulb in the front or re ar turn signal lights has not burned out.The turn signal lever can be used to show the following intention of thedriver: Right turnLeft turnLane change to the right(push and hold the lever part-way)The right hand signals will flashuntil you release the lever.Lane change to the left (pushand hold the lever partway)The left hand signals will flashuntil you release the lever.
