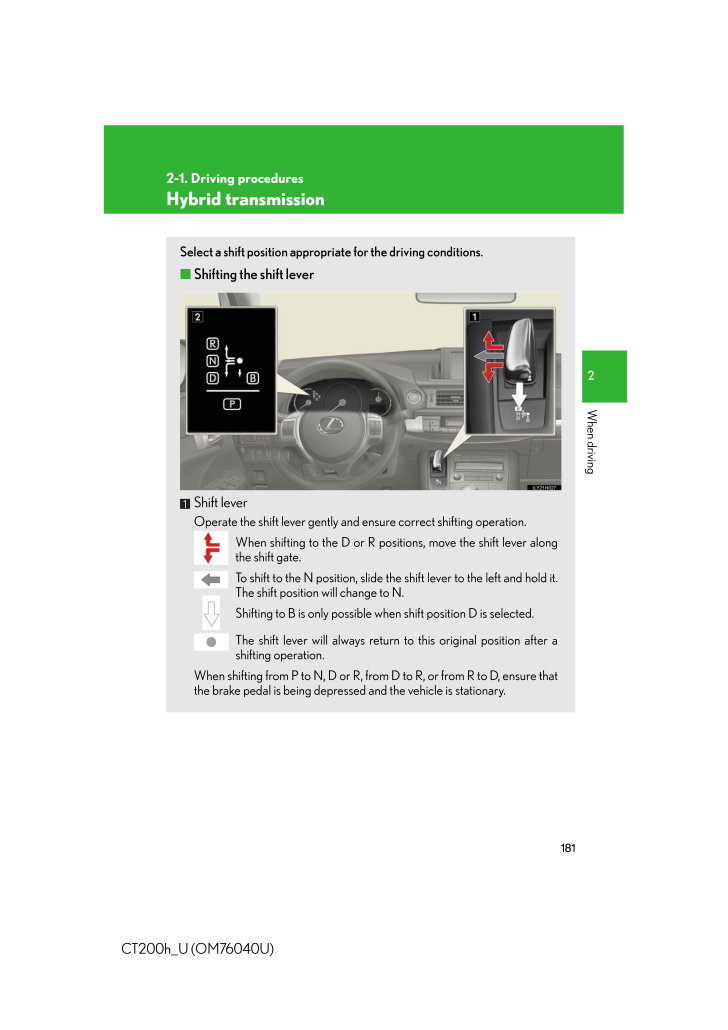

1812-1. Driving procedures2When drivingCT200h_U (OM76040U)Hybrid transmissionSelect a shift position appropriate for the driving conditions.■Shifting the shift leverShift leverOperate the shift lever gently and ensure correct shifting operation.When shifting to the D or R positions, move the shift lever alongthe shift gate.To shift to the N position, slide the shift lever to the left and hold it.The shift position will change to N.Shifting to B is only possible wh en shift position D is selected.The shift lever will always return to this original position after ashifting operation.When shifting from P to N, D or R, from D to R, or from R to D, ensure thatthe brake pedal is being depressed and the vehicle is stationary.
