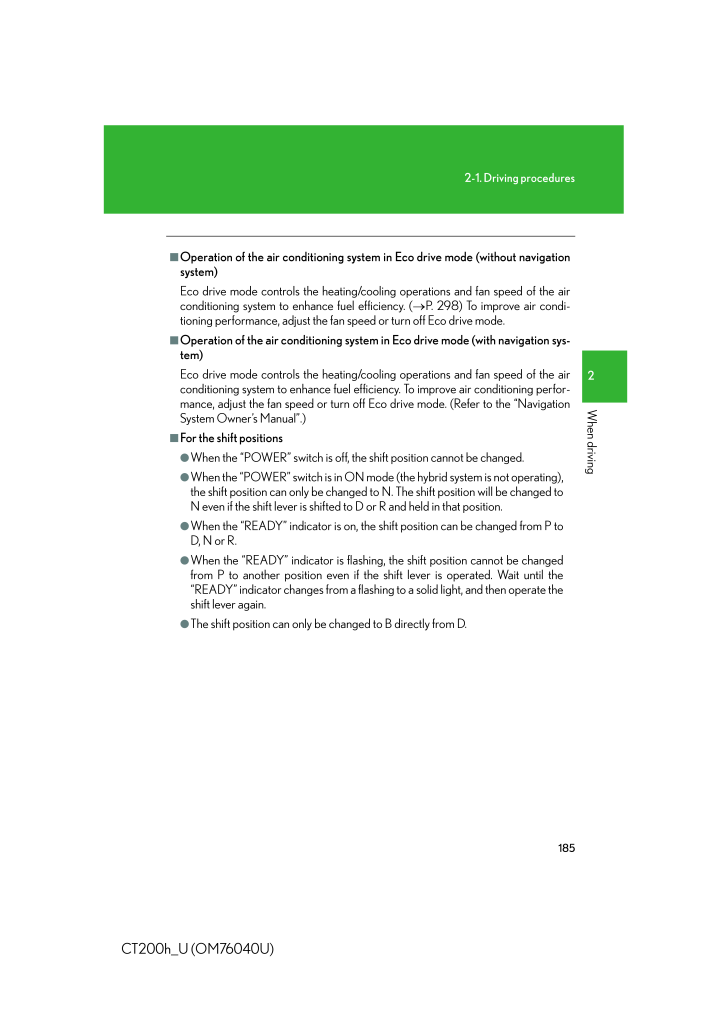

1852-1. Driving procedures2When drivingCT200h_U (OM76040U)■Operation of the air conditioning system in Eco drive mode (without navigationsystem)Eco drive mode controls the heating/cooling operations and fan speed of the airconditioning system to enhance fuel efficiency. ( →P. 298) To improve air condi-tioning performance, adjust the fan speed or turn off Eco drive mode.■Operation of the air conditioning system in Eco drive mode (with navigation sys-tem)Eco drive mode controls the heating/cooling operations and fan speed of the airconditioning system to enhance fuel effici ency. To improve air conditioning perfor-mance, adjust the fan speed or turn off Eco drive mode. (Refer to the "NavigationSystem Owner's Manual".)■For the shift positions●When the "POWER" switch is off, the shift position cannot be changed.●When the "POWER" switch is in ON mode (the hybrid system is not operating),the shift position can only be changed to N. The shift position will be changed toN even if the shift lever is shifted to D or R and held in that position.●When the "READY" indicator is on, the sh ift position can be changed from P toD, N or R.●When the "READY" indicator is flashing, the shift position cannot be changedfrom P to another position even if the shift lever is operated. Wait until the"READY" indicator changes from a flashing to a solid light, and then operate theshift lever again.●The shift position can only be changed to B directly from D.
参考になったと評価
3人が参考になったと評価しています。
このマニュアルの目次
-
1 .160CT200h_U (OM76040U)2-1...160CT200h_U (OM76040U)2-1. Driving proceduresDriving the vehicleThe following procedures should be observed to ensure safe driving: ■Starting the hybrid system →P. 173■DrivingWith the brake pedal depressed, shift the shift position to D. (→P. 181) Check t...
-
2 .1612-1. Driving procedure...1612-1. Driving procedures2When drivingCT200h_U (OM76040U)Starting off on a uphillFirmly set the parking brake with the brake pedal depressed, andthen shift the shift position to D.Release the brake pedal and gently depress the acceleratorpedal. Release t...
-
3 .1622-1. Driving procedure...1622-1. Driving proceduresCT200h_U (OM76040U)■When starting off on a uphillThe hill-start assist control is available. ( →P. 265)■Driving in the rain●Drive carefully when it is raining, because visibility will be reduced, the windowsmay become fogged-up, a...
-
4 .1632-1. Driving procedure...1632-1. Driving procedures2When drivingCT200h_U (OM76040U)■For efficient use●Shift the shift position to D when driving. In the N position, the gasoline engine operates but electricity cannot be gener-ated. The hybrid battery (traction battery) will disch...
-
5 .1642-1. Driving procedure...1642-1. Driving proceduresCT200h_U (OM76040U)CAUTION■When starting the vehicleAlways keep your foot on the brake pe dal while stopped with the hybrid systemoperating. This prevents the vehicle from creeping.■When driving the vehicle●Do not drive if you are...
-
6 .1652-1. Driving procedure...1652-1. Driving procedures2When drivingCT200h_U (OM76040U)CAUTION●If the smell of exhaust is noticed inside the vehicle, open the windows and checkthat the back door is closed. Large amounts of exhaust in the vehicle can causedriver drowsiness and an accid...
-
7 .1662-1. Driving procedure...1662-1. Driving proceduresCT200h_U (OM76040U)CAUTION●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, donot drive over 85 mph (140 km/h) unless your vehicle has high-speed capabilitytires. Driving over 85 mph (140 km/h)...
-
8 .1672-1. Driving procedure...1672-1. Driving procedures2When drivingCT200h_U (OM76040U)CAUTION■If you hear a squealing or scraping no ise (brake pad wear limit indicators)Have your Lexus dealer check and replac e the brake pads as soon as possible. Rotor damage may result if the pa ds...
-
9 .1682-1. Driving procedure...1682-1. Driving proceduresCT200h_U (OM76040U)CAUTION■When the vehicle is parked●Make sure to firmly apply the parking brake and shift the shift position to P.Failure to do so may cause the vehicle to move, or the vehicle to accelerate sud-denly if the acc...
-
10 .1692-1. Driving procedure...1692-1. Driving procedures2When drivingCT200h_U (OM76040U)CAUTION●Do not touch the exhaust pipe while the hybrid system is operating or immedi-ately after turning the hybrid system off. Doing so may cause burns.●Do not leave the hybrid system operating in ...
-
11 .1702-1. Driving procedure...1702-1. Driving proceduresCT200h_U (OM76040U)CAUTION■When taking a nap in the vehicleAlways turn the hybrid system off. Otherwise, if you accidentally move the shiftlever or depress the accelerator pedal, this could cause an accident or fire due tohybrid s...
-
12 .1712-1. Driving procedure...1712-1. Driving procedures2When drivingCT200h_U (OM76040U)NOTICE■When driving the vehicle●Do not depress the accelerator and brake pe dals at the same time during driving,as this may restrain driving torque.●Do not use the accelerator pedal or depress the ...
-
13 .1722-1. Driving procedure...1722-1. Driving proceduresCT200h_U (OM76040U)NOTICE■When encountering flooded roadsDo not drive on a road that has flooded after heavy rain etc. Doing so may cause thefollowing serious damage to the vehicle:●Engine stalling●Short in electrical components●E...
-
14 .1732-1. Driving procedure...1732-1. Driving procedures2When drivingCT200h_U (OM76040U)Power (ignition) switchPerforming the following operations when carrying the electronic key onyour person starts the hybrid system or changes "POWER" switch modes.■Starting the hybrid systemCheck th...
-
15 .1742-1. Driving procedure...1742-1. Driving proceduresCT200h_U (OM76040U)■Stopping the hybrid systemStop the vehicle completely.Set the parking brake. (→P. 191)Shift the shift position to P. (→P. 184)Check that the shift position indicator shows P. ( →P. 181)Press the "POWER" switch....
-
16 .1752-1. Driving procedure...1752-1. Driving procedures2When drivingCT200h_U (OM76040U)■Auto power off functionIf the vehicle is left in ACCESSORY or ON mode (the hybrid system is not operat-ing) for more than an hour with the shif t position in P, the "POWER" switch willautomatically...
-
17 .1762-1. Driving procedure...1762-1. Driving proceduresCT200h_U (OM76040U)■Operation of the "POWER" switch●When operating the "POWER" switch, one short, firm press is enough. If theswitch is pressed improperly, the hybrid system may not start or the "POWER"switch mode may not change. ...
-
18 .1772-1. Driving procedure...1772-1. Driving procedures2When drivingCT200h_U (OM76040U)NOTICE■To prevent 12-volt battery discharge●Do not leave the "POWER" switch in ACCESSORY or ON mode for long peri-ods of time without the hybrid system on.●If the hybrid system is off, but the indi ...
-
19 .1782-1. Driving procedure...1782-1. Driving proceduresCT200h_U (OM76040U)EV drive modeIn EV drive mode, the electric motor (traction motor), powered by thehybrid battery (traction battery) , is used to drive the vehicle.This mode allows you to drive in residential areas late at night...
-
20 .1792-1. Driving procedure...1792-1. Driving procedures2When drivingCT200h_U (OM76040U)■Situations in which EV drive mode cannot be turned onIt may not be possible to turn EV drive mode on in the following situations. If it can-not be turned on, a buzzer will sound and a message will ...
-
21 .1802-1. Driving procedure...1802-1. Driving proceduresCT200h_U (OM76040U)■ Possible driving distance when driving in EV drive modeIn EV drive mode, it is possible to drive up to about 1/2 mile (1 km) if driving at aspeed of about 25 mph (40 km/h) or less. (The distance that is poss...
-
22 .1812-1. Driving procedure...1812-1. Driving procedures2When drivingCT200h_U (OM76040U)Hybrid transmissionSelect a shift position appropriate for the driving conditions.■Shifting the shift leverShift leverOperate the shift lever gently and ensure correct shifting operation.When shifti...
-
23 .1822-1. Driving procedure...1822-1. Driving proceduresCT200h_U (OM76040U)Shift position indicatorThe current shift position is illuminated.When any shift position other than D or B is selected, the arrow toward Bdisappears from the shift position indicator.When selecting the shift po...
-
24 .1832-1. Driving procedure...1832-1. Driving procedures2When drivingCT200h_U (OM76040U)■Selecting a driving modeThe following modes can be selected to suit driving conditions:Normal modeEco drive modeThe torque generated inresponse to accelerator pedaldepression will lessen com-pared ...
-
25 .1842-1. Driving procedure...1842-1. Driving proceduresCT200h_U (OM76040U)P position switch■When shifting the shift position to PFully stop the vehicle and set theparking brake, and then press theP position switch.When the shift position is changedto P, the switch indicator comes on.C...
-
26 .1852-1. Driving procedure...1852-1. Driving procedures2When drivingCT200h_U (OM76040U)■Operation of the air conditioning system in Eco drive mode (without navigationsystem)Eco drive mode controls the heating/cooling operations and fan speed of the airconditioning system to enhance fu...
-
27 .1862-1. Driving procedure...1862-1. Driving proceduresCT200h_U (OM76040U)In addition, if the an attempt is made to ch ange the shift position by moving the shiftlever in any of the following situations, th e buzzer will sound and the shifting opera-tion will be disabled or the shift ...
-
28 .1872-1. Driving procedure...1872-1. Driving procedures2When drivingCT200h_U (OM76040U)■Reverse warning buzzerWhen shifting into R, a buzzer will sound to inform the driver that the shift position isin R.■About engine braking When shift position B is selected, releasing the accelerat...
-
29 .1882-1. Driving procedure...1882-1. Driving proceduresCT200h_U (OM76040U)CAUTION■When driving on slippery road surfacesDo not accelerate or shift the shift position suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting inan accident.■For the shi...
-
30 .1892-1. Driving procedure...1892-1. Driving procedures2When drivingCT200h_U (OM76040U)NOTICE■Hybrid battery (traction battery) chargeIf the shift position is in N, the hybrid battery (traction battery) will not be charged.To help prevent the battery from discharg ing, avoid leaving t...
-
31 .1902-1. Driving procedure...1902-1. Driving proceduresCT200h_U (OM76040U)Turn signal lever■Turn signals can be operated whenThe "POWER" switch is in ON mode.■If the indicator flashes faster than usualCheck that a light bulb in the front or re ar turn signal lights has not burned out....
-
32 .1912-1. Driving procedure...1912-1. Driving procedures2When drivingCT200h_U (OM76040U)Parking brake■Parking brake engaged warning buzzerThe buzzer sounds to indicate that parkin g brake is still engaged (with the vehiclehaving reached a speed of 3 mph [5 km/h]). ( →P. 615)■Usage in w...
-
33 .1922-1. Driving procedure...1922-1. Driving proceduresCT200h_U (OM76040U)Horn■After adjusting the steering wheel Make sure that the steering wheel is securely locked. The horn may not sound if the steeri ng wheel is not securely locked. ( →P. 98)To sound the horn, press on orclose to...
