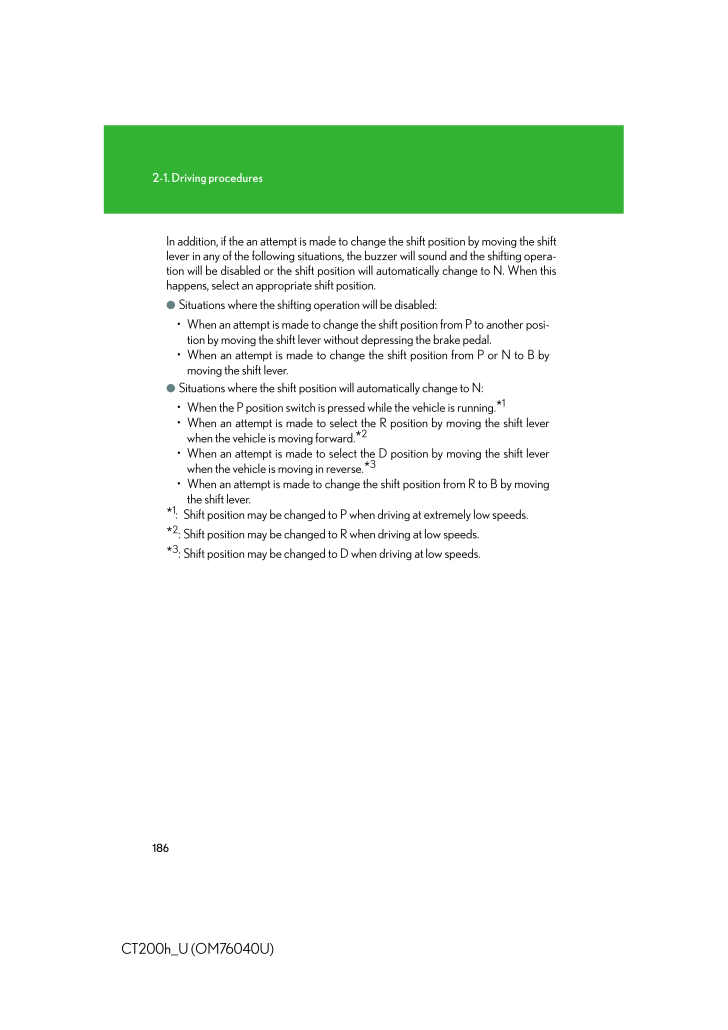

1862-1. Driving proceduresCT200h_U (OM76040U)In addition, if the an attempt is made to ch ange the shift position by moving the shiftlever in any of the following situations, th e buzzer will sound and the shifting opera-tion will be disabled or the shift position will automati cally change to N. When thishappens, select an appropriate shift position.● Situations where the shifting operation will be disabled:* When an attempt is made to change the shift position from P to another posi-tion by moving the shift lever without depressing the brake pedal.* When an attempt is made to change the shift position from P or N to B bymoving the shift lever.● Situations where the shift position will automatically change to N:* When the P position switch is pressed while the vehicle is running.*1* When an attempt is made to select the R position by moving the shift leverwhen the vehicle is moving forward.*2* When an attempt is made to select th e D position by moving the shift leverwhen the vehicle is moving in reverse.*3* When an attempt is made to change the shift position from R to B by movingthe shift lever.*1: Shift position may be changed to P when driving at extremely low speeds.*2: Shift position may be changed to R when driving at low speeds.*3: Shift position may be changed to D when driving at low speeds.
