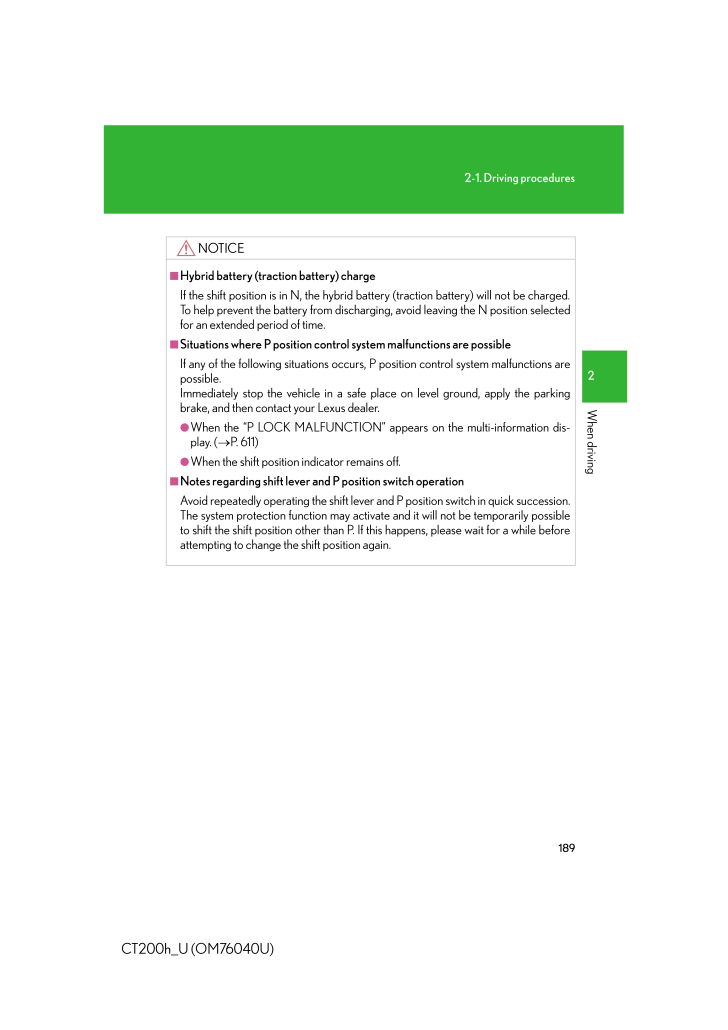

1892-1. Driving procedures2When drivingCT200h_U (OM76040U)NOTICE■Hybrid battery (traction battery) chargeIf the shift position is in N, the hybrid battery (traction battery) will not be charged.To help prevent the battery from discharg ing, avoid leaving the N position selectedfor an extended period of time.■Situations where P position control system malfunctions are possibleIf any of the following situations occurs, P position control system malfunctions arepossible. Immediately stop the vehicle in a safe place on level ground, apply the parkingbrake, and then contact your Lexus dealer.●When the "P LOCK MALFUNCTION" ap pears on the multi-information dis-play. (→P. 611)●When the shift position indicator remains off.■Notes regarding shift lever and P position switch operationAvoid repeatedly operating the shift lever an d P position switch in quick succession.The system protection function may activate and it will not be temporarily possibleto shift the shift position other than P. If this happens, please wait for a while beforeattempting to change the shift position again.
